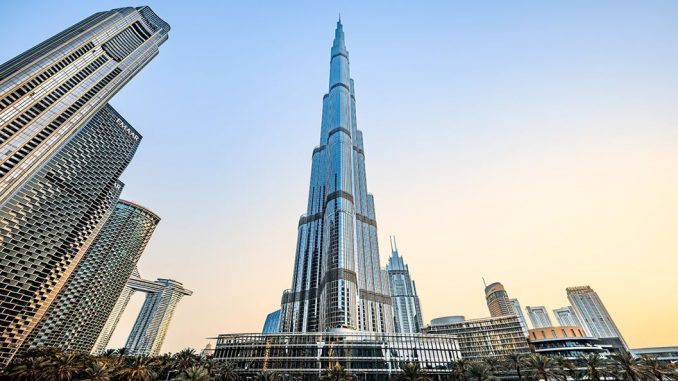

Beyond its record-breaking 828 metres height and its shimmering facade dominating the skyline, something equally impressive lies hidden within the Burj Khalifa – its air conditioning system.
Outdoor temperatures in the scorching heat of the Arabian Desert regularly exceed 45°C. This makes creating and maintaining a comfortable indoor environment in the tallest building in the world an immense technical challenge.
The air conditioning system cooling the Burj Khalifa is therefore a masterpiece of innovation, efficiency and precision.
The challenge: Cooling a vertical city in the desert
Dubai’s climate presents a harsh environment for any building. Let alone a vertical city containing over 1.85 million square feet of residential, commercial and hotel space.
There were four primary challenges facing the engineers responsible for the air conditioning system for the Burj Khalifa:
- Extreme heat loads: Ambient temperatures can exceed 50°C with direct sunlight on glass surfaces amplifying internal heat gain.
- Stack effect: The height of the building causes large air pressure differences between upper and lower floors, influencing airflow and temperature control.
- Energy efficiency: A conventional HVAC approach would consume enormous power, conflicting with the Burj Khalifa’s sustainability goals.
- Water scarcity: With Dubai such an arid region, cooling processes had to minimise water usage whilst maintaining efficiency.
Design Overview: Centralised cooling with district support
The air conditioning system of the Burj Khalifa is a centralised, district cooling based system. It was designed and installed by Voltas Limited, an Indian engineering firm.
It draws chilled water from Dubai’s District Cooling Plant – part of the Emirates Central Cooling Systems Corporation (Empower) Network.
Water cooled to approximately 5°C (41°F) is pumped into the building through underground insulated pipes. This represents a different approach to traditional standalone chillers.
Within the Burj Khalifa, mechanical floors are located roughly every 30 floors up. They house air handling units (AHUs) and fan coil units (FCUs). These units use chilled water from the district plant to cool air locally for each zone of the Burj Khalifa.
A distributed approach helps maintain stable temperatures whilst countering the stack effect and minimising energy losses from vertical air transport.
Key components and technologies of the Burj Khalifa air conditioning system
There are four key components and technologies which help the air conditioning system in the Burj Khalifa cope with the challenges posed by being part of the world’s tallest building.
Air handling units (AHUs)
AHUs on mechanical floors draw in filtered outside air. They mix this outdoor air with recirculated indoor air and cool it using chilled water coils.
The cooled, dehumidified air is then distributed to occupied zones via ducts – providing temperature control for each zone.
Variable air volume systems (VAV)
VAV systems adjust airflow to each space based on occupancy and temperature to achieve precise comfort control. This enhances both comfort within the Burj Khalifa and the energy efficiency of the building.
High-efficiency chilled water system
The district cooling system uses centrifugal chillers operating with high Coefficient of Performance (COP) values. This ensures lower electricity consumption per ton of cooling compared to conventional chillers.
Heat Recovery and Condensate Collection
Condensation from air handlers and cooling coils is captured and reused. The Burj Khalifa reportedly recovers up to 57 million litres of condensate water per year, which is then used for irrigating landscaping and cooling tower makeup.
Managing the stack effect
One of the most critical issues when it comes to skyscraper air conditioning design is the stack effect. The stack effect is the vertical movement of air caused by temperature and pressure differences between indoor and outdoor air columns.
In the Burj Khalifa, the pressure differential between the top and the bottom of the building can exceed 400 pascals.
To control airflow, engineers employed pressure relief systems, airlocks and sealed lift shafts. The air conditioning system is also zoned to limit the amount of vertical air movement, enabling independent control of different sections of the building.
All these measures help to prevent unwanted air infiltration, main comfort and reduce energy loses.
Energy efficiency and sustainability of Burj Khalifa air conditioning system
Despite its massive scale and the challenges posed by operating air conditioning, the Burj Khalifa incorporates several sustainability measures in its system.
Integration with Dubai’s district cooling network reduces on-site energy use and capital cost to the Burj Khalifa.
Heat recovery captures and reuses waste heat from air handling units, whilst the use of condensate recycling saves millions of litres of potable water annually.
The use of high performance insulation and glazing minimises solar heat gain and lowers cooling demand.
There is also a modern building management system (BMS) which monitors temperature, humidity, pressure and energy consumption in real times.
The combination of these measures allows the Burj Khalifa air conditioning system to maintain indoor temperatures between 20°C–24°C and relative humidity of around 50 percent – even under extreme external conditions.
Smart controls and future proofing
Contained within the Burj Khalifa air conditioning system are IoT-enabled sensors and automated controls. They optimise cooling loads based on occupancy and indoor temperature and predict maintenance needs through data analytics.
By stringently monitoring the air conditioning system, downtime is minimised and reliability enhanced by reducing the chances of district cooling pipe repair being required.
The system is adaptive, scalable and ready for future retrofits or integration with newer energy technologies as and when they come online.
World leading air conditioning keep the Burj Khalifa cool
A quick look at the operational numbers behind the Burj Khalifa air conditioning system tells you how impressive it is.
13,000 tons of refrigeration cooling capacity. A chilled water flow rate of 42,000 litres per minute. Energy savings of up to 25 percent compared with conventional skyscraper and high rise building cooling setups. And temperature control within a ±1°C variation.
The air conditioning system of the Burj Khalifa is more than an engineering utility — it is a vital enabler of life and comfort within the world’s tallest building.
Through district cooling integration, innovative air distribution, water recovery and intelligent control, it manages to create a sustainable indoor environment in one of Earth’s hottest urban climates.
The system stands as a benchmark for skyscrapers worldwide, demonstrating how advanced engineering can conquer even the most extreme environmental challenges.
